1959年以来日喀则市发展与空间演化的尺度逻辑
杨永春(1969—),男,陕西白水人,博士,教授,博士生导师。主要研究方向为城市与区域发展、转型与规划。E-mail:yangych @lzu.edu.cn。 |
收稿日期: 2018-10-08
修回日期: 2019-06-08
网络出版日期: 2025-04-18
基金资助
国家自然科学基金项目(41571155)
国家自然科学基金项目(41971198)
第二次青藏高原综合科学考察研究资助(2019QZKK1005)
The Scale Logic of Shigatse City's Development and Urban Spatial Evolution Since the Year of 1959
Received date: 2018-10-08
Revised date: 2019-06-08
Online published: 2025-04-18

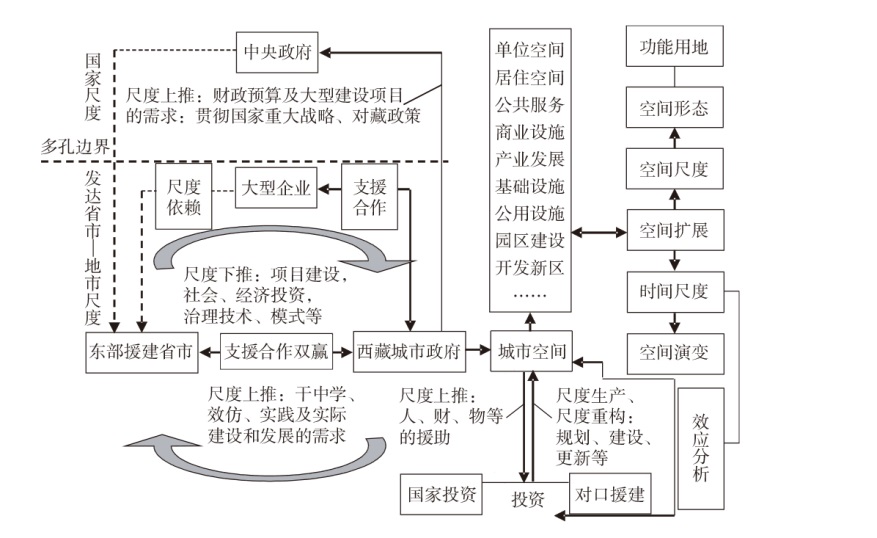

对日喀则市城市发展实施反梯度、跨越式发展战略是国家力量的核心体现。基于尺度理论,运用质性、数理统计、空间分析法,研究投资对城市发展、空间演化的效应、特征及治理模式。结果表明:①1995年后城市空间开始快速扩张。2005—2014年,城市空间扩展的变化幅度和速度最大。1959—2016年,城市空间结构逐渐优化和功能逐渐完善,且居住、公共管理和公共服务职能最终占据了主导地位。2015—2016年,城市发展转向内部更新及绿色建设阶段。②国家、援藏投资对促进经济发展和建成区扩张具有合力作用,但国家投资对城市发展和空间演化的效应大于援藏投资对应的效应。③中央、中东部发达省市、西藏地市不同等级政府之间进行尺度生产组成两种治理模式:中央政府—东部发达省市—西藏地方政府垂直治理模式,中央政府—中央企业/东部发达省市—西藏地方政府组成的协调治理模式。④计划经济时期,实施国家—地方两级尺度治理模式,建设居住空间、公共管理和服务设施、基础设施等构筑物,促进了城市空间扩展和结构变化。⑤改革开放以来,国家投资、对口援建共同作用来推动日喀则城市建设,形成国家—发达省市—地方三级尺度模式,且对口援建对城市空间扩展是一种强化过程。
杨永春 , 孙燕 , 王伟伟 . 1959年以来日喀则市发展与空间演化的尺度逻辑[J]. 经济地理, 2019 , 39(12) : 48 -61 . DOI: 10.15957/j.cnki.jjdl.2019.12.006
The anti-gradient and leapfrog development strategy in Shigatse's urban development is the core national strength. This paper discusses the similar and different effects of state investment and counterpart aiding to the urban development and urban spatial expansion in Shigatse. The objective explores the procedure related scale production of People's Republic of China (PRC), developed provinces (prefecture) and local government in Tibetan urban development and city spatial expansion. Based on scale theory, the qualitative research method, mathematical statistics technology and GIS spatial analysis are used to seek for the characteristics, evolution features and governance models. The results show that: 1) After the year of 1995, urban space began to expand rapidly. From 2005 to 2014, the variable quantity and rate of urban spatial expansion are the largest. The urban spatial structure and function are gradually optimized and improved. Resident and public service facilities are the dominant property. In 2014, industrial functions exceed public service facilities uses. In the year of 2015 to 2016, urban spatial development is turning to internal renewal and green development strategy. 2) The assistant investment of state and developed provinces all promotes the economic development and urban spatial expansion. The urban developed and spatial evolutional effects of national investment are greater than what coming from developed provinces assistant investment to Tibet. 3) The Central government, developed provinces in middle and eastern China and Tibetan local government apply scale production forming two kinds of governance model: vertical governance model and coordinate governance style. Meanwhile, the vertical governance model is defined as three hierarchical scales: Central government-China developed prefectural provinces government-Tibetan local government. Coordinate governance model is consists of four levels about the Central government-China developed provinces government- Central enterprise-Local government. 4) At the socialist planned economic time, the governance political scale is two level of central-local government. The constructive aspects in residential space, public service facilities and infrastructure boost urban spatial expansion and urban land use structure variation. 5) At the reform and opening period, it is concluded that the three level political governance of state government-developed provinces government-local government. The state investment and counterpart construction from developed areas jointly furthers urban construction. Counterpart assistance to the urban spatial expansion is a strengthening process.
Key words: state power; assistant tibetan strength; scale theory; rescaling; Shigatse City
表1 国家投资、援藏投资与经济相关指标的Pearson相关分析Tab.1 Pearson correlation analysis about the state and aid-Tibetan investment with the related economic index |
指标 | 1959—2016年 | 1959—1994年 | 1995—2016年 | |||||
---|---|---|---|---|---|---|---|---|
国家投资 | 援藏投资 | 国家投资 | 援藏投资 | 国家投资 | 援藏投资 | |||
建成区面积 | 0.889** | 0.703** | 0.684** | - | 0.896** | 0.703** | ||
GDP | 0.961** | 0.958** | 0.882** | - | 0.946** | 0.977** | ||
农民人均收入 | 0.953** | 0.886** | 0.729** | - | 0.933** | 0.873** | ||
市民人均收入 | 0.931** | 0.948** | 0.498** | - | 0.902** | 0.935** | ||
城镇人口 | 0.801** | 0.932** | 0.545** | - | 0.691** | 0.807** | ||
非农业人口 | 0.853** | 0.980** | 0.588** | - | 0.829** | 0.933** |
注:“**”表示Pearson相关系数在0.01显著性水平上;“-”表示1959—1994年援藏投资数据缺失。 |
表2 1959—2016年日喀则市城市空间扩展特征统计结果Tab.2 The characteristic of urban spatial expansion’s statistical results about Shigatse in 1959-2016 |
时间段 | K1(km2) | K2(km2/year) | K3(1/year) |
---|---|---|---|
1959—2016 | 20.750 | 0.358 | 0.163 |
1959—1994 | 3.980 | 0.114 | 0.050 |
1988—1994 | 1.700 | 0.243 | 0.054 |
1995—2016 | 16.385 | 0.745 | 0.113 |
1995—2004 | 4.445 | 0.445 | 0.068 |
2005—2014 | 10.473 | 1.047 | 0.088 |
2015—2016 | 0.263 | 0.132 | 0.006 |
表3 国家、援藏投资对经济社会综合发展、建成区空间扩展的效应分析Tab.3 Effect analysis of the state and aid-Tibetan investment on the economic and social development and built-up area’s expansion |
时间段 | 经济社会综合发展效应 | 建成区空间扩展效应 | |||
---|---|---|---|---|---|
经济指标对应的模型 | 拟合优度(R2) | 经济指标对应的模型 | 拟合优度(R2) | ||
1959—2016 | y=0.648x1+0.342x2 | 0.907 | y=0.681x1+0.249x2 | 0.809 | |
1959—1994 | y=0.683x1 | 0.467 | y=0.684x1 | 0.467 | |
1995—2016 | y=0.701x1+0.279x2 | 0.861 | y=0.836x1+0.080x2 | 0.806 |

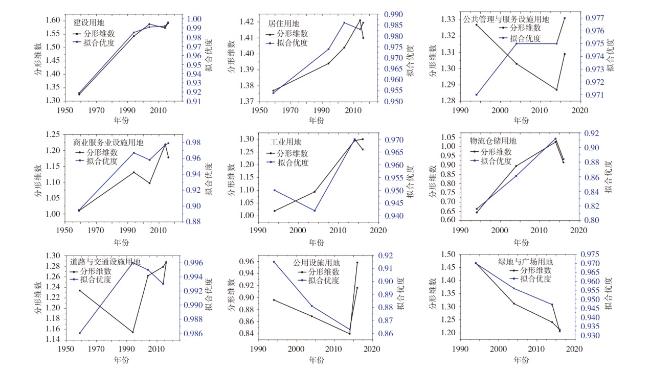

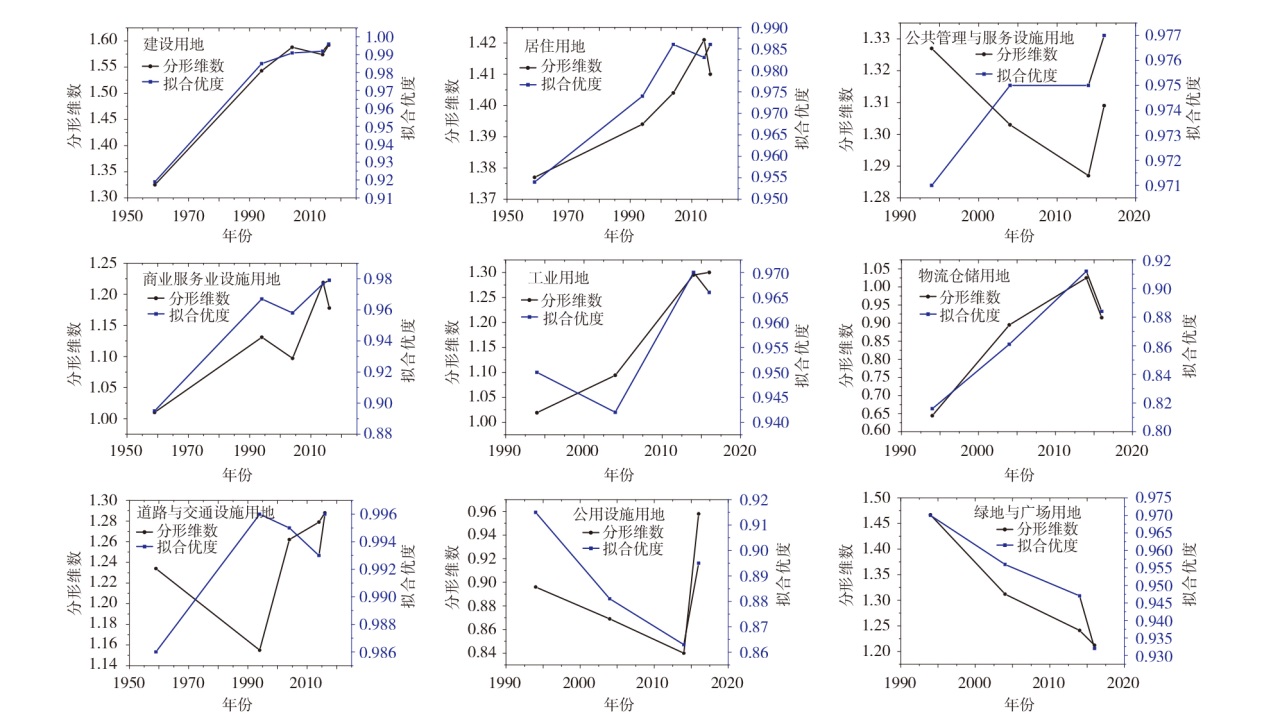

表4 日喀则市城市建设用地及其各土地利用类型的分形特征统计(1959—2016年)Tab.4 Statistics on the fractal characteristics of urban construction land and its land use types in Shigatse city(1959-2016) |
年份 | 统计计算类别 | 建设 用地 | 居住 用地 | 公共管理与公共 服务设施用地 | 商业服务业设施用地 | 工业 用地 | 物流仓储用地 | 道路与交通设施用地 | 公用设施用地 | 绿地与广场用地 |
---|---|---|---|---|---|---|---|---|---|---|
1959 | 无标度区 | k2~k9 | k2~k7 | - | k4~k7 | - | - | k2~k9 | - | - |
分形维数 | 1.490 | 1.490 | - | 1.010 | - | - | 1.234 | - | - | |
拟合优度 | 0.975 | 0.981 | - | 0.904 | - | - | 0.990 | - | - | |
标准误差 | 0.087 | 0.109 | - | 0.122 | - | - | 0.052 | - | - | |
分形维数下限 | 1.284* | 1.210* | - | 0.696* | - | - | 1.111* | - | - | |
分形维数上限 | 1.696* | 1.770* | - | 1.324* | - | - | 1.357* | - | - | |
分形维数误差范围 | 0.411* | 0.560* | - | 0.627* | - | - | 0.246* | - | - | |
1994 | 无标度区 | k1~k9 | k1~k9 | k2~k9 | k2~k9 | k2~k9 | k6~k9 | k1~k9 | k6~k9 | k1~k9 |
分形维数 | 1.543 | 1.394 | 1.327 | 1.131 | 1.019 | 0.644 | 1.155 | 0.896 | 1.467 | |
拟合优度 | 0.985 | 0.974 | 0.971 | 0.967 | 0.950 | 0.816 | 0.996 | 0.915 | 0.970 | |
标准误差 | 0.071 | 0.086 | 0.087 | 0.079 | 0.088 | 0.116 | 0.021 | 0.102 | 0.096 | |
分形维数下限 | 1.375* | 1.191* | 1.121* | 0.944* | 0.811* | 0.370* | 1.105* | 0.655* | 1.240* | |
分形维数上限 | 1.641* | 1.496* | 1.425* | 1.206* | 1.090* | 0.687* | 1.178* | 0.963* | 1.586* | |
分形维数误差范围 | 0.266* | 0.306* | 0.303* | 0.261* | 0.279* | 0.317* | 0.073* | 0.308* | 0.346* | |
2004 | 无标度区 | k1-k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k4~k9 | k1~k9 | k2~k9 | k1~k9 |
分形维数 | 1.588 | 1.404 | 1.303 | 1.097 | 1.094 | 0.895 | 1.262 | 0.869 | 1.312 | |
拟合优度 | 0.991 | 0.986 | 0.975 | 0.958 | 0.942 | 0.861 | 0.995 | 0.881 | 0.956 | |
标准误差 | 0.055 | 0.074 | 0.085 | 0.086 | 0.103 | 0.136 | 0.033 | 0.120 | 0.106 | |
分形维数下限 | 1.458* | 1.229* | 1.102* | 0.894* | 0.850* | 0.573* | 1.184* | 0.585* | 1.061* | |
分形维数上限 | 1.718* | 1.579* | 1.504* | 1.300* | 1.338* | 1.217* | 1.340* | 1.153* | 1.563* | |
分形维数误差范围 | 0.260* | 0.350* | 0.402* | 0.407* | 0.487* | 0.643* | 0.156* | 0.568* | 0.501* | |
2014 | 无标度区 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 |
分形维数 | 1.574 | 1.421 | 1.287 | 1.219 | 1.295 | 1.025 | 1.279 | 0.840 | 1.241 | |
拟合优度 | 0.992 | 0.983 | 0.975 | 0.977 | 0.970 | 0.912 | 0.993 | 0.863 | 0.947 | |
标准误差 | 0.053 | 0.062 | 0.076 | 0.070 | 0.086 | 0.120 | 0.038 | 0.126 | 0.111 | |
分形维数下限 | 1.449* | 1.274* | 1.107* | 1.053* | 1.092* | 0.741* | 1.189* | 0.542* | 0.979* | |
分形维数上限 | 1.699* | 1.568* | 1.467* | 1.385* | 1.498* | 1.309* | 1.369* | 1.138* | 1.503* | |
分形维数误差范围 | 0.251* | 0.293* | 0.359* | 0.331* | 0.407* | 0.568* | 0.180* | 0.596* | 0.525* | |
2016 | 无标度区 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 | k1~k9 |
分形维数 | 1.592 | 1.410 | 1.309 | 1.178 | 1.300 | 0.915 | 1.288 | 0.958 | 1.212 | |
拟合优度 | 0.996 | 0.986 | 0.977 | 0.979 | 0.966 | 0.884 | 0.996 | 0.895 | 0.932 | |
标准误差 | 0.036 | 0.062 | 0.074 | 0.065 | 0.091 | 0.125 | 0.029 | 0.124 | 0.124 | |
分形维数下限 | 1.507* | 1.263* | 1.134* | 1.024* | 1.085* | 0.619* | 1.219* | 0.665* | 0.919* | |
分形维数上限 | 1.677* | 1.557* | 1.484* | 1.332* | 1.515* | 1.211* | 1.357* | 1.251* | 1.505* | |
分形维数误差范围 | 0.170* | 0.293* | 0.350* | 0.307* | 0.430* | 0.591* | 0.137* | 0.586* | 0.586* |
注:“*”表示分形维数下限、上限以及分形维数误差范围通过了0.05的显著性水平;“-”表示该时期对应的土地利用类型缺失,故无法进行相关土地利用类型的统计计算。 |

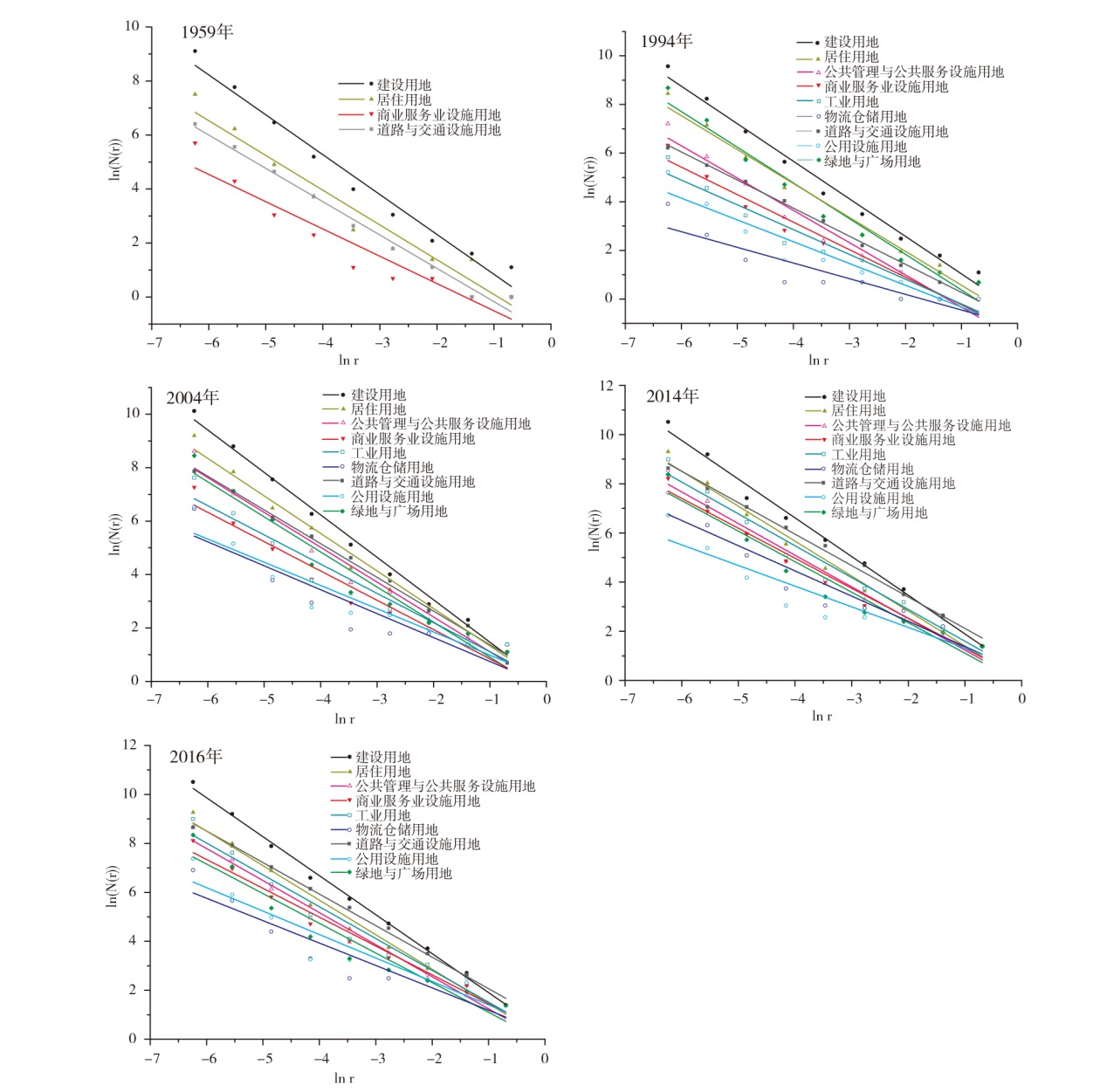

图4 建设用地及各功能用地的lnr与ln(N(r))双对数的幂函数拟合结果Fig.4 Power function fitting results of lnr and ln(N(r)) about construction land and kinds of functional lands |
