Evolution and Mechanism of Regional Logistics Spatial Network:Taking County-level Administrative Units in Hunan Province as an Example
Received date: 2024-07-20
Revised date: 2025-07-06
Online published: 2025-10-10

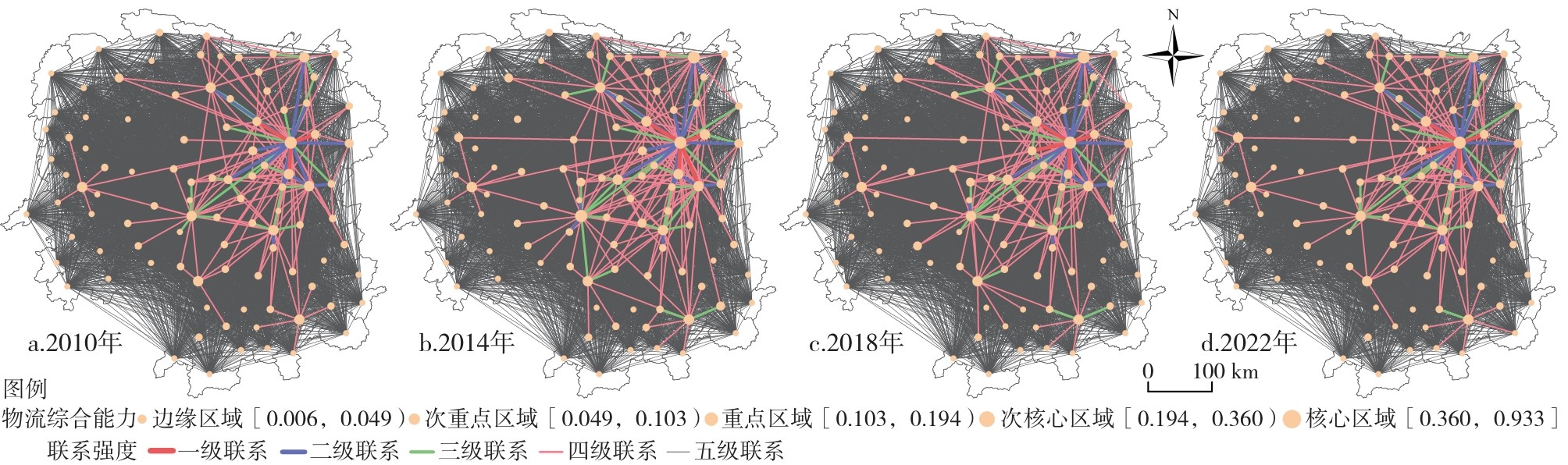

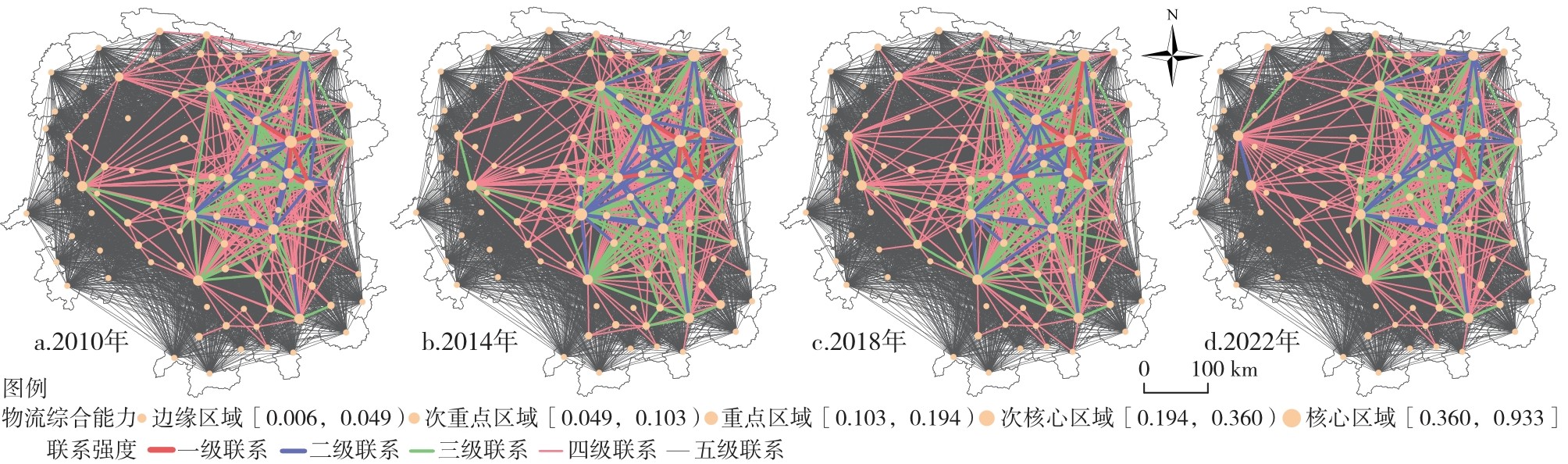

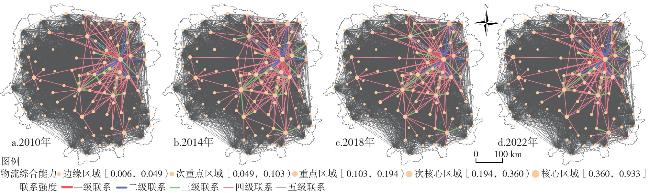

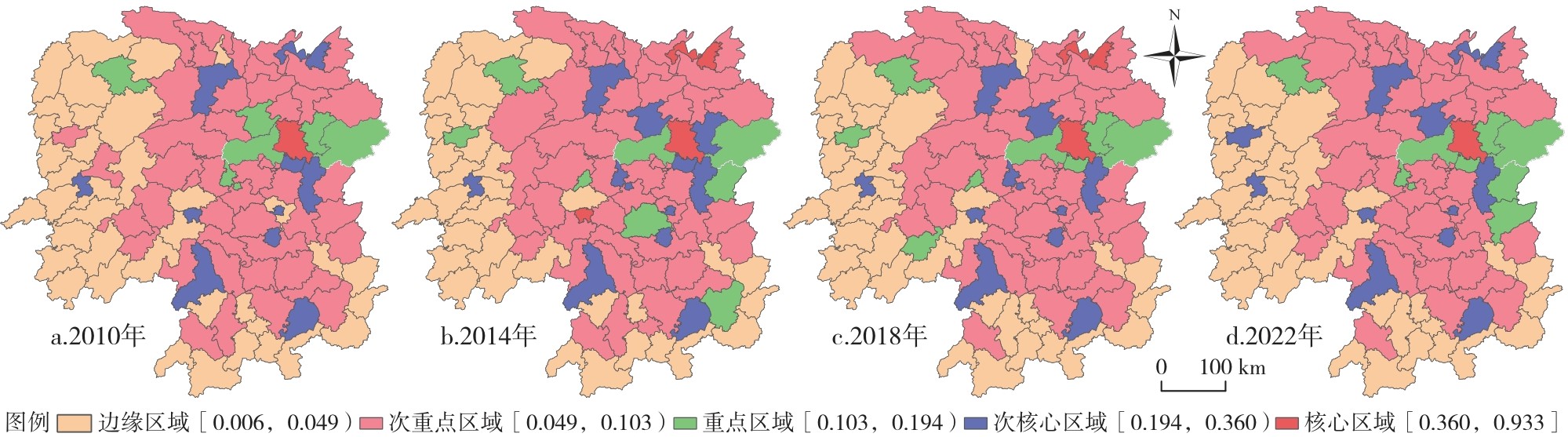

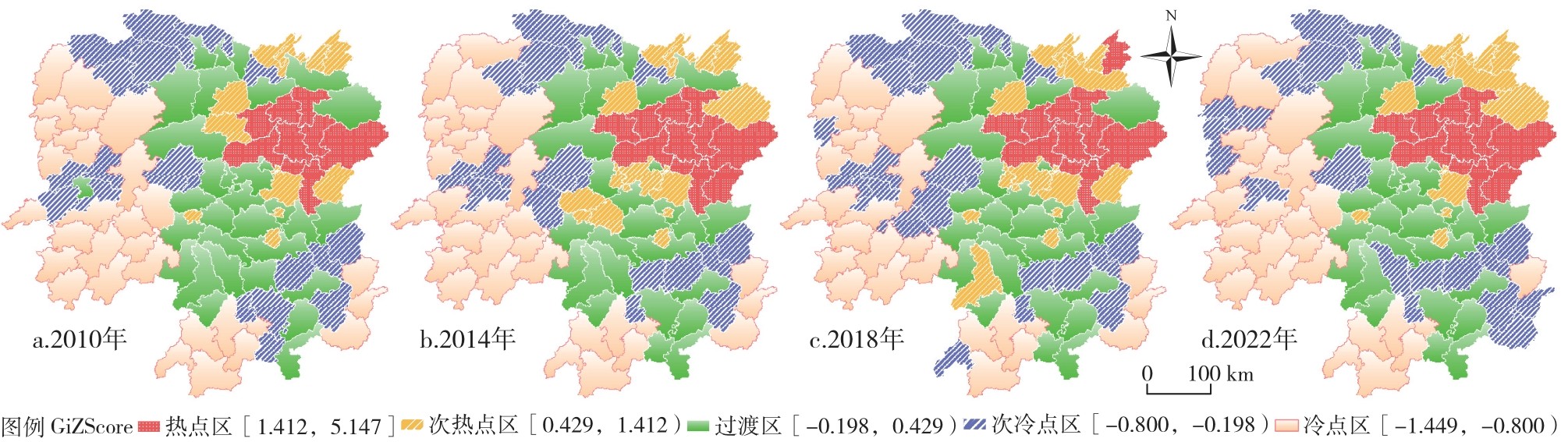

Regional logistics is the precursor to high-quality development, and its spatial network leads spatial reconstruction. Based on the principle of economic development and geographical relationship, 99 county-level administrative units have been designated in Hunan Province. Panel data and geographic information from 2010 to 2022 is mined to evaluate the logistics comprehensive capacity and connected strength to map the spatial network. Finally, the methods of SNA, GIS, QAP are also applied to explore the evolution and mechanism about regional logistics network. The results show that: 1)The logistics comprehensive capacity of Hunan Province is spatial-temporal variation, the spatial network hierarchy is significant, and the clustering and differential characteristics are clear. The logistics connected strength weakens in layered manner from center to outer, presenting a "circular decreasing" pattern with Changsha as the core and outward. The logistics network is multilevel and differentiation with a form of "one core with multiple centers, dominated by weak links". The logistics clustering trend of the Changsha-Zhuzhou-Xiangtan urban agglomeration is strong, and the central-east, and western regions of Hunan Province are the hotspots about regional logistics. 2)The spatial network structure of regional logistics in Hunan Province is becoming more dense, mature, and balanced. The regional logistics has strong aggregation with an expanded network, which evolved from a structure of "one core multi-point" local clustering into a three-layer and half circle network of "core-half edge-edge". The network core overflow and location link proximity is obvious with the "matthew effect" weakens, which forming a "one pole and multiple points" development structure leaded by Changsha city. Network connection is external strength and internal weakness. The central units are dominant with siphon and overflow phenomena. The isolated units are less which acting on the edge layer. The whole network has good accessibility and extensibility. The spatial clustering characteristics of subgroups are deepened with improving efficiency of group links. The maximum gravity line structure is stable, and the resources control of regional logistics is strong. 3)Geographical proximity is the main driving force about evolution to the regional logistics spatial network in Hunan Province. The resource output and connection densification of regional logistics supported by th economic development. The basic conditions drive the accessibility and extension of the network. The logistics value represents value capability and scale efficiency of the regional logistics. There is a synergistic interaction among which factors.
LI Lihua , CAO Meng , TAN Leyi , ZHANG Jingxi , XING Keke , SONG Kun . Evolution and Mechanism of Regional Logistics Spatial Network:Taking County-level Administrative Units in Hunan Province as an Example[J]. Economic geography, 2025 , 45(8) : 139 -151 . DOI: 10.15957/j.cnki.jjdl.2025.08.015
表1 区域物流综合能力评价指标体系及说明Tab.1 Comprehensive capacity indicator structure of regional logistics |
维度 | 指标 | 对区域物流综合能力的支撑 | 单位 | 符号 |
---|---|---|---|---|
经济发展 | 人均GDP | 经济发展水平贡献能力 | 万元 | |
第三产业增加值 | 核心经济竞争力推动作用 | 万元 | ||
居民人均可支配收入 | 居民消费经济支撑 | 元/人 | ||
基础条件 | 公路通车里程数 | 主导依赖方式对物流活动的承载能力 | km | |
邮电业务总量 | 物流发展基本业务水平 | 亿元 | ||
移动电话用户数 | 物流发展技术支撑能力 | 万户 | ||
互联网宽带用户数 | 物流信息化发展水平 | 万户 | ||
物流从业人员 | 物流业劳动力水平 | 万人 | ||
物流价值 | 农林牧渔业总产值 | 主体产业物流支撑价值 | 亿元 | |
物流产业增加值 | 物流行业贡献能力 | 亿元 | ||
公路货运量 | 主导依赖方式物流承运能力 | 万t |
表2 社会网络分析指标及说明Tab.2 Indicators interpretation of social network analysis |
指标 | 计算公式 | 含义解释 |
---|---|---|

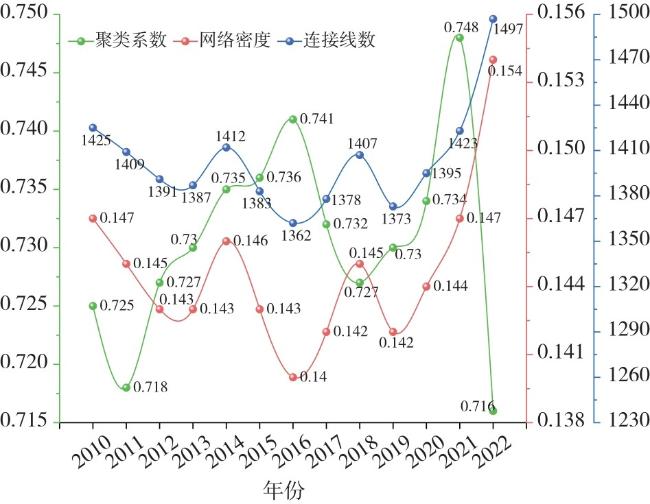

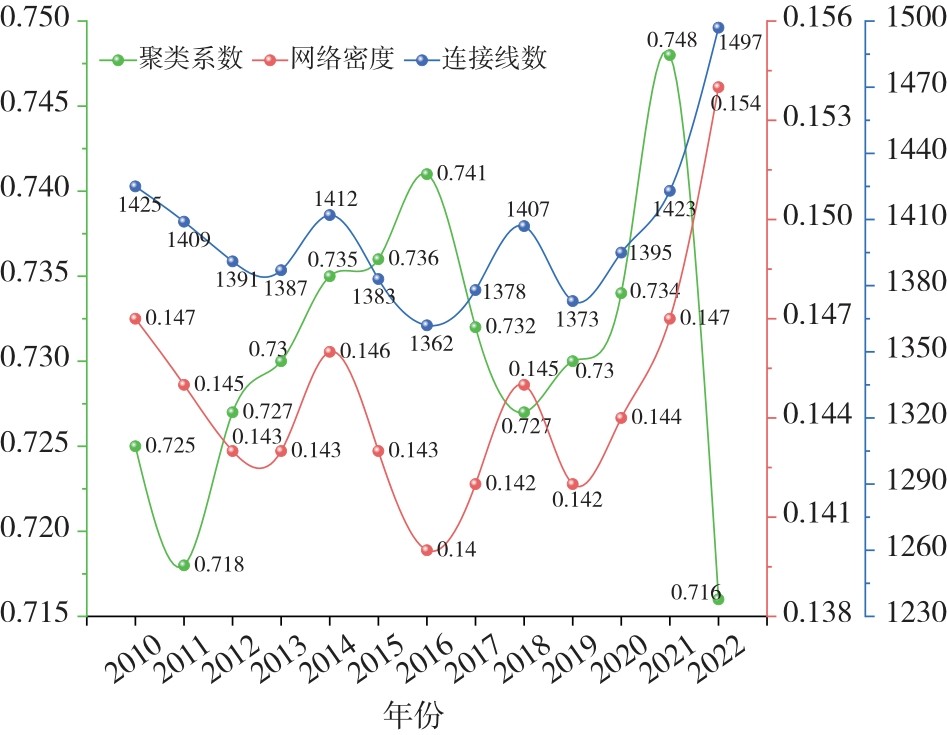

网络密度 | 式中: 为网络密度,反映整体网络节点连线密集程度,以县级行政单元间实际联系数量与最大联系数比值标定, 为区域物流网络间实际联系数量, 为单元总数 | |

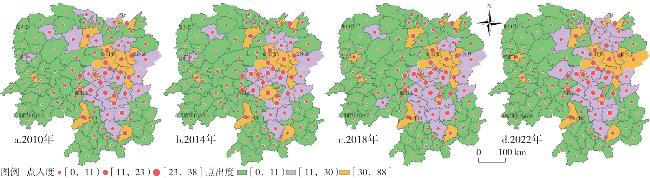

点入度 | 式中: 与 分别表示行政单元 作为起点与终点的所有边权数之和,反映区域物流联系的点入强度与点出强度; 与 分别为单元 与 、 与 的物流引力 | |
点出度 | ||
度数中心度 | 式中: 为区域物流有向网络中行政单元 出入度与其他可能 个单元的最大联系数的比值,反映区域物流联系能力,用于判断行政单元 是否处于网络中心位置, 则表示该单元为网络孤立点 | |
接近中心度 | 式中: 为行政单元 与 之间最大联系数与最短路径和的比值,有向网络中分为外接近中心度和内接近中心度,反映节点在网络中的连通性与独立性; 为行政单元 与 最短路径 | |
对称性链接 | 式中: 为区域物流流向强度的评估性指标, ,表示物流要素从行政单元 净流向 ,若 ,则为 净流向 | |

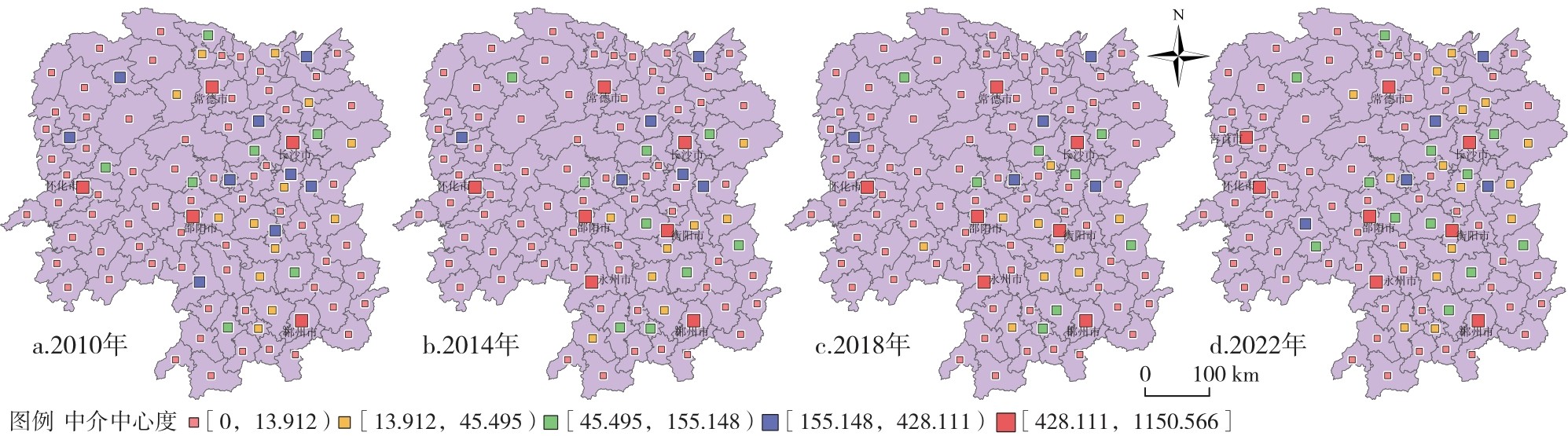

中介中心度 | 式中: 为总物流网络联系度,用于判断行政单元 对其他单元间物流联系的控制能力; 为区域物流网络中任意两个行政单元间最短路径经过单元 的数量 |

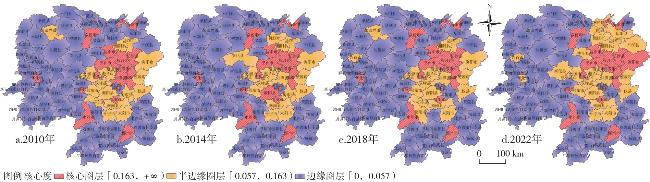

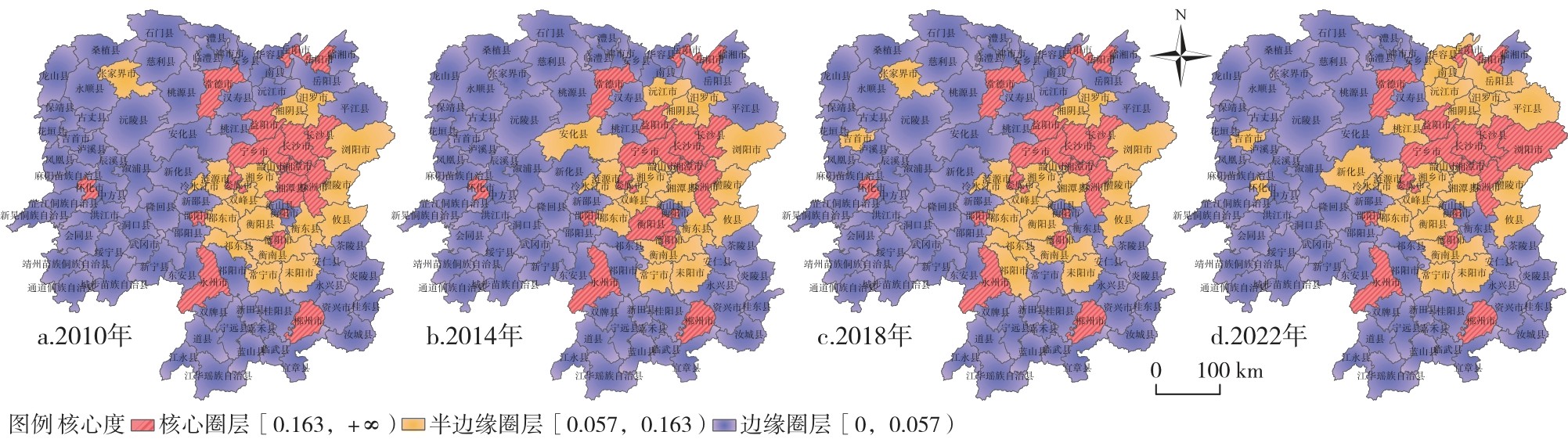

表3 区域物流空间网络节点接近中心度演化历程Tab.3 Evolution of node proximity centrality about regional logistics spatial network |
年份 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
内接近中心度 | 核心圈层 | 0.038 | 0.039 | 0.039 | 0.038 | 0.036 | 0.035 | 0.034 | 0.038 | 0.036 | 0.038 | 0.038 | 0.041 | 0.039 |
半边缘圈层 | 0.038 | 0.039 | 0.039 | 0.038 | 0.036 | 0.035 | 0.034 | 0.038 | 0.036 | 0.038 | 0.038 | 0.041 | 0.039 | |
边缘圈层 | 0.036 | 0.037 | 0.037 | 0.036 | 0.035 | 0.034 | 0.033 | 0.037 | 0.036 | 0.037 | 0.037 | 0.040 | 0.038 | |
外接近中心度 | 核心圈层 | 0.185 | 0.185 | 0.185 | 0.227 | 0.186 | 0.292 | 0.293 | 0.293 | 0.296 | 0.414 | 0.413 | 0.416 | 0.293 |
半边缘圈层 | 0.172 | 0.171 | 0.171 | 0.206 | 0.171 | 0.255 | 0.254 | 0.256 | 0.258 | 0.348 | 0.346 | 0.353 | 0.260 | |
边缘圈层 | 0.103 | 0.104 | 0.105 | 0.123 | 0.102 | 0.142 | 0.140 | 0.148 | 0.146 | 0.196 | 0.196 | 0.201 | 0.142 |
[1] |
|
[2] |
|
[3] |
|
[4] |
孙春晓, 裴小忠, 刘程军, 等. 中国城市物流创新的空间网络特征及驱动机制[J]. 地理研究, 2021, 40(5):1354-1371.
|
[5] |
周欢, 黄金, 郑湘明. 风险常态化背景下长江经济带物流网络结构韧性[J]. 经济地理, 2024, 44(3):127-137.
|
[6] |
|
[7] |
张明斗, 翁爱华. 长江经济带城市水资源利用效率的空间关联网络及形成机制[J]. 地理学报, 2022, 77(9):2353-2373.
|
[8] |
任梦瑶, 肖作鹏, 王缉宪. 中国城际专线物流网络空间格局[J]. 地理学报, 2020, 75(4):820-832.
|
[9] |
黄音, 任天鸣, 黄淑敏, 等. “互联网+”背景下浙江省城际货运时空网络演化及驱动机制[J]. 经济地理, 2020, 40(6):126-136.
|
[10] |
王启轩, 程遥. 公路货运视角下城市群网络特征及绩效探讨——以我国三大城市群为例[J]. 城市规划学刊, 2020(2):32-39.
|
[11] |
郭仪, 戎陆庆. “一带一路”背景下西南城市群物流网络结构及经济效应[J]. 城市问题, 2022(2):4-12.
|
[12] |
李晓瑞, 盛科荣, 王传阳. 中国城市技术转移网络演化的内生机制及空间差异研究[J]. 地理信息科学学报, 2024, 26(7):1672-1687.
|
[13] |
杨亮洁, 俞啸, 杨永春, 等. 中国西部城市网络拓扑结构演化及结构效应[J]. 经济地理, 2023, 43(4):51-62.
|
[14] |
马欣颖, 王红春. 京津冀区域物流网络结构研究——基于社会网络分析视角[J]. 北京建筑大学学报, 2020, 36(3):95-102.
|
[15] |
|
[16] |
高雅妮, 何丹, 高鹏, 等. 基于三层级股权关系的长三角城市网络节点地位研究[J]. 地理研究, 2022, 41(6):1577-1592.
|
[17] |
聂晶鑫, 刘合林. 我国不同区域空间组织方式的尺度与效率研究——基于城市间物流市场网络的分析[J]. 城市规划, 2021, 45(9):70-78.
|
[18] |
|
[19] |
王克强, 万宁娜. 长三角地区城市城际联系度测度——基于物流数据视角的分析[J]. 城市问题, 2017(10):25-37.
|
[20] |
周楠, 陈久梅, 但斌, 等. 高质量发展下区域物流与区域经济时空耦合及影响因素——以长江经济带为例[J]. 软科学, 2022, 36(10):84-92.
|
[21] |
张强, 杜德斌, 郭卫东, 等. 全球能源结构性权力时空格局演变及其关键驱动因素[J]. 地理学报, 2023, 78(9):2316-2337.
|
[22] |
李利华, 王轩. 我国省域物流集群竞争力研究[J]. 经济地理, 2020, 40(5):165-173.
|
[23] |
赵林, 高晓彤, 吴殿廷. 黄河流域绿色技术创新空间关联网络结构与影响因素[J]. 人文地理, 2023, 38(4):102-111.
|
[24] |
|
[25] |
张旭, 吕明睿, 张春雪, 等. 高质量发展背景下区域绿色物流水平评价及障碍因子[J]. 经济地理, 2023, 43(5):139-149.
|
[26] |
|
[27] |
|
/
〈 |
|
〉 |
